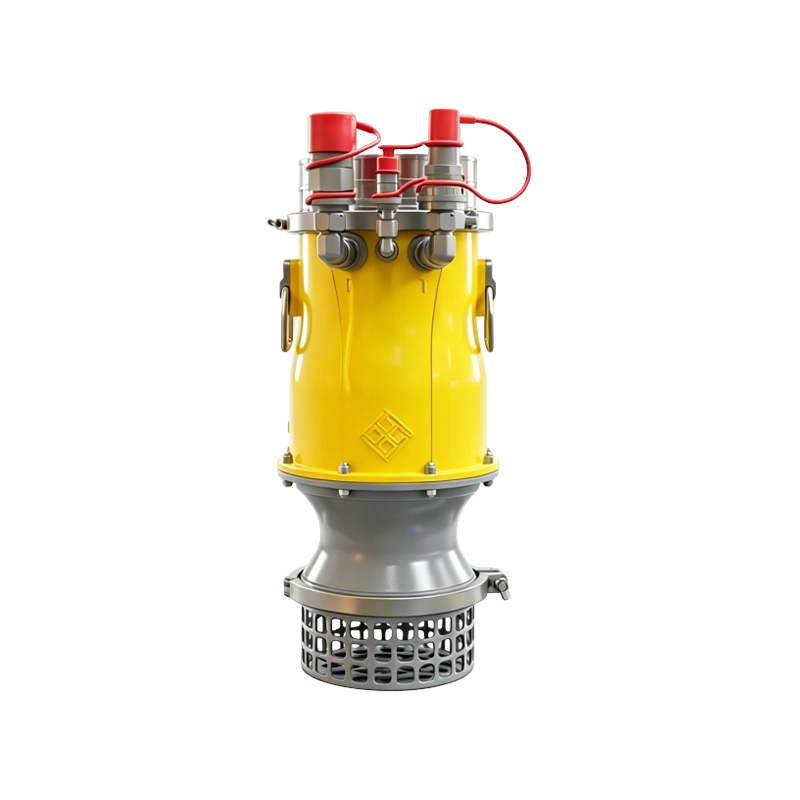

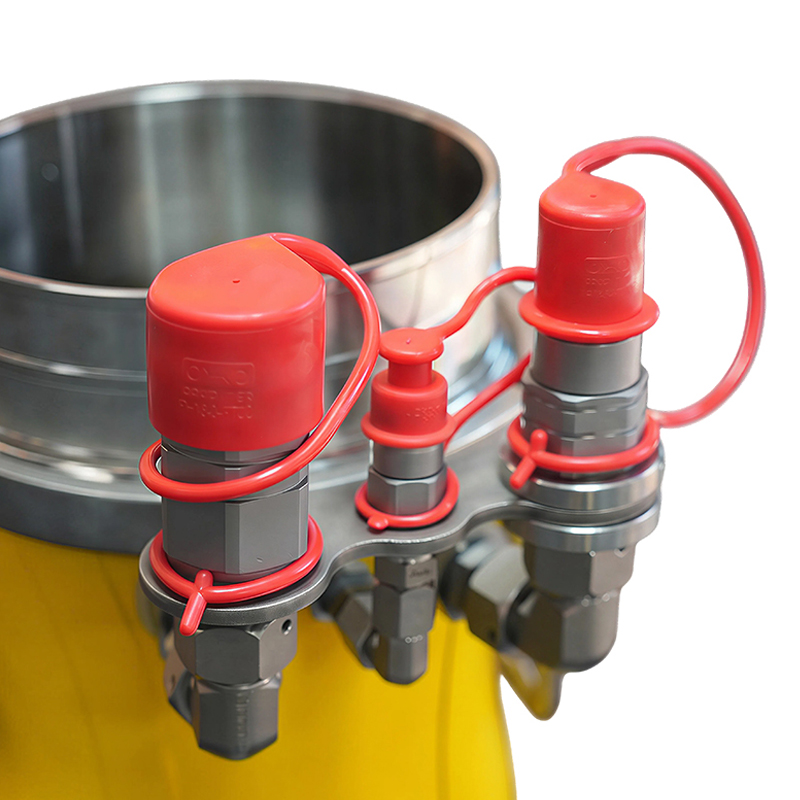

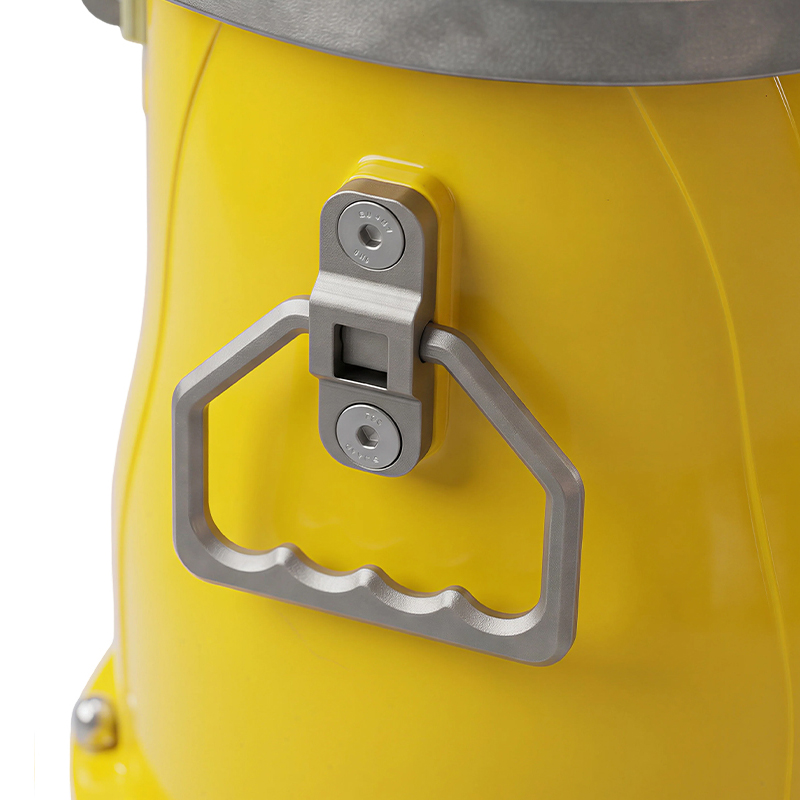

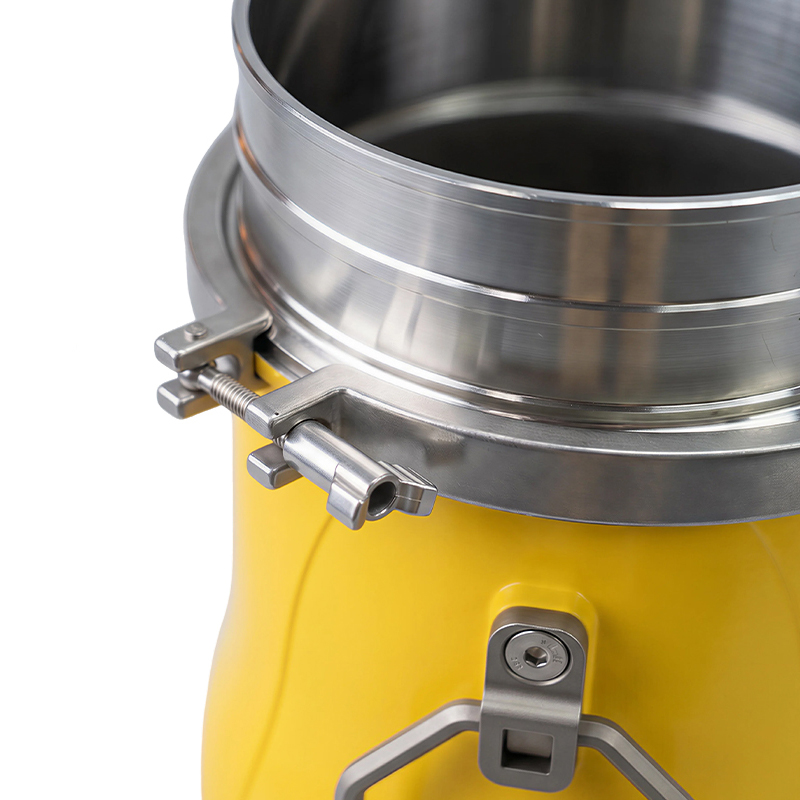

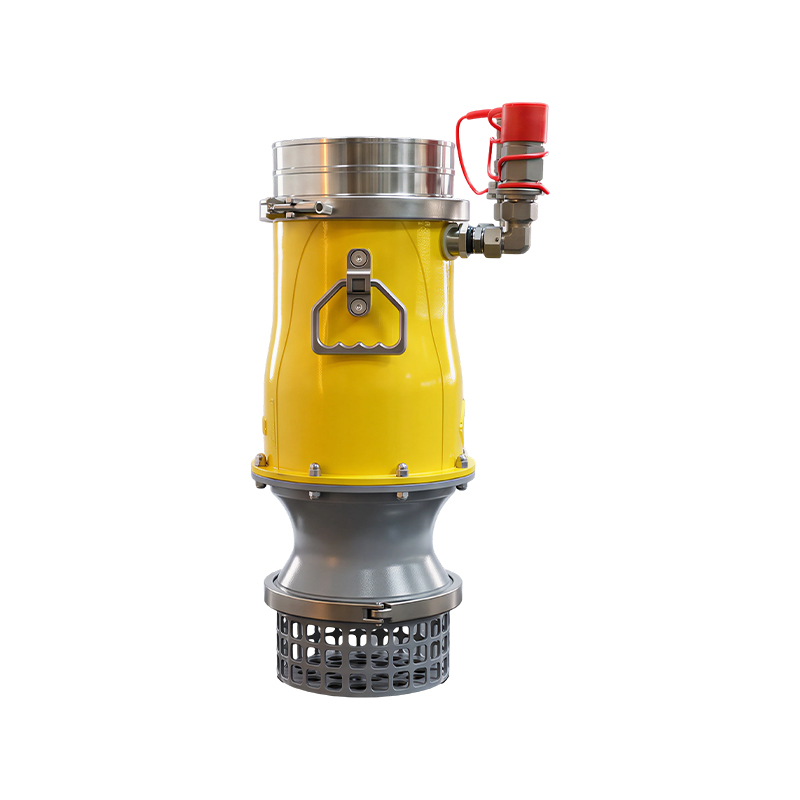

MFP450-50 Hydraulic Axial Flow Pump
With its compact structure and efficient drainage, it is designed specifically for medium-flow rapid drainage scenarios such as urban flooding and emergency drainage. The MFP450-50 is a medium-sized hydraulic axial flow pump with a drainage capacity of 450 m³/h and a head of 16 m, effectively responding to flooding emergencies in a short time. The entire unit is constructed of stainless steel, making it robust and corrosion-resistant, and can handle media containing solid particles up to 30 mm in diameter. Its compact design facilitates handling and deployment, and it is compatible with hydraulic flow inputs of 50-60 Lpm, making it a reliable choice for municipal emergency response and engineering drainage applications.
Parameter
Contact us
| Parameter Category | Parameter Item | Standard Specification Value |
| Compliance & Certification | Standard Compliance Certification | CE Certification |
| Core Pump Performance Parameters | Rated Displacement / Flow Rate | 450 m³/h (Cubic Meters per Hour) |
| Maximum Discharge Head | 16 m | |
| Maximum Solids Passing Diameter | 30 mm | |
| Maximum Allowable Working Pressure | 300 bar | |
| Hydraulic Drive System Parameters | Hydraulic Oil Flow Rate Range | 50-60 Lpm (Liters per Minute) |
| Hydraulic Oil Port Connection Size | G3/4 & G1/4 | |
| Structural & Physical Parameters | Net Weight | 30 (35) kg |
| Overall Dimensions (L×W×H) | 325 × 258 × 540 mm | |
| Discharge Outlet Diameter | 200 mm | |
| Material Specifications | Pump Casing Material | Stainless Steel |
| Pump Impeller Material | Stainless Steel |
