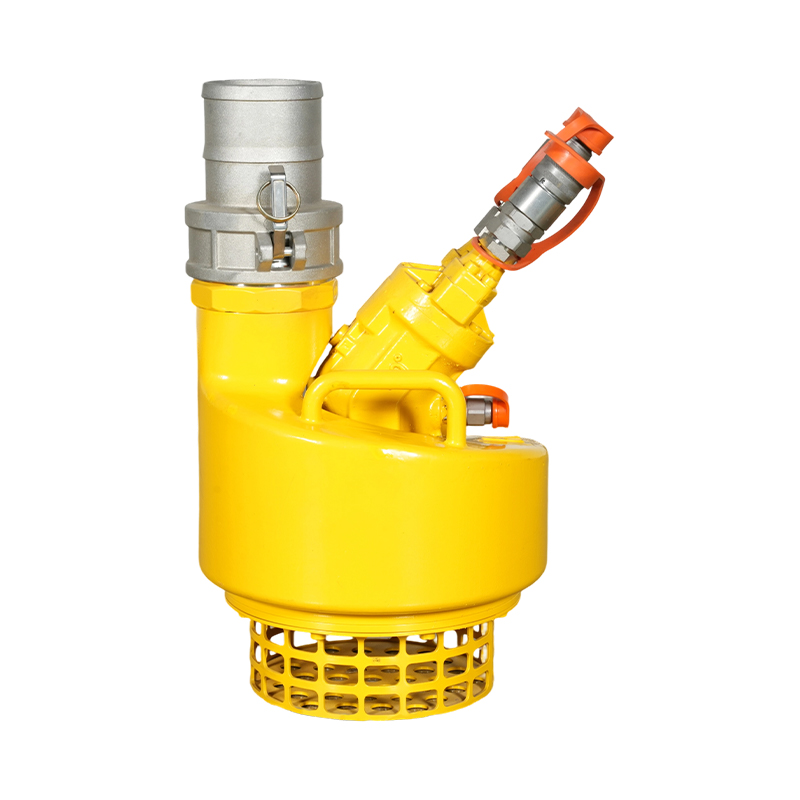

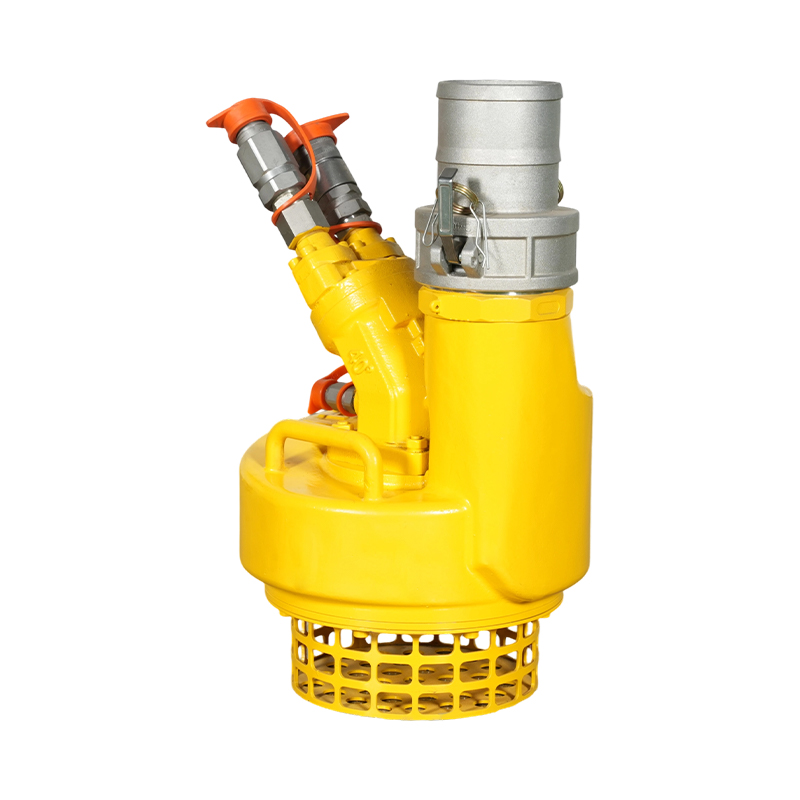

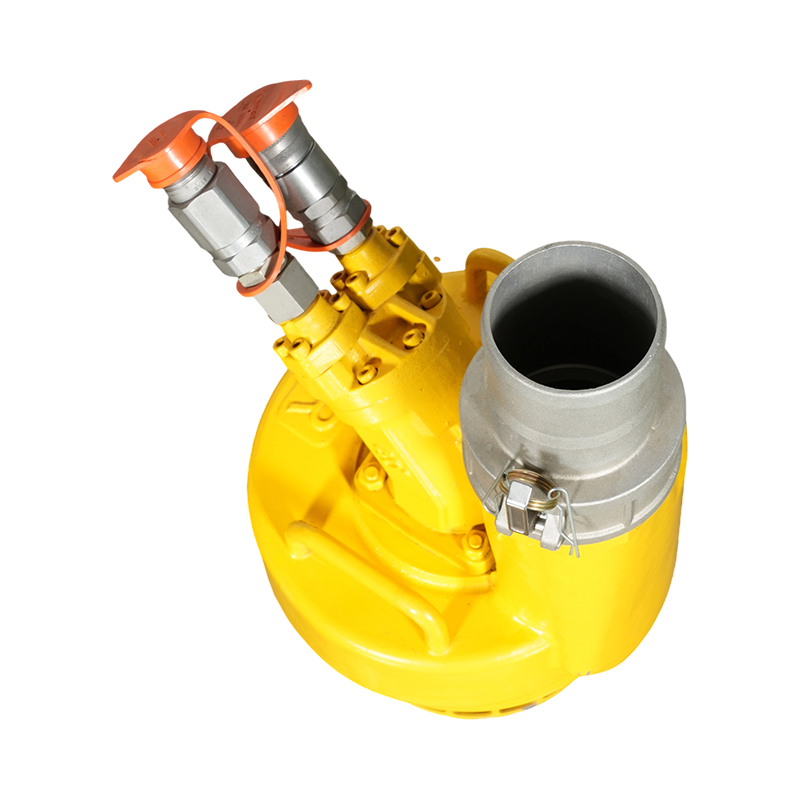

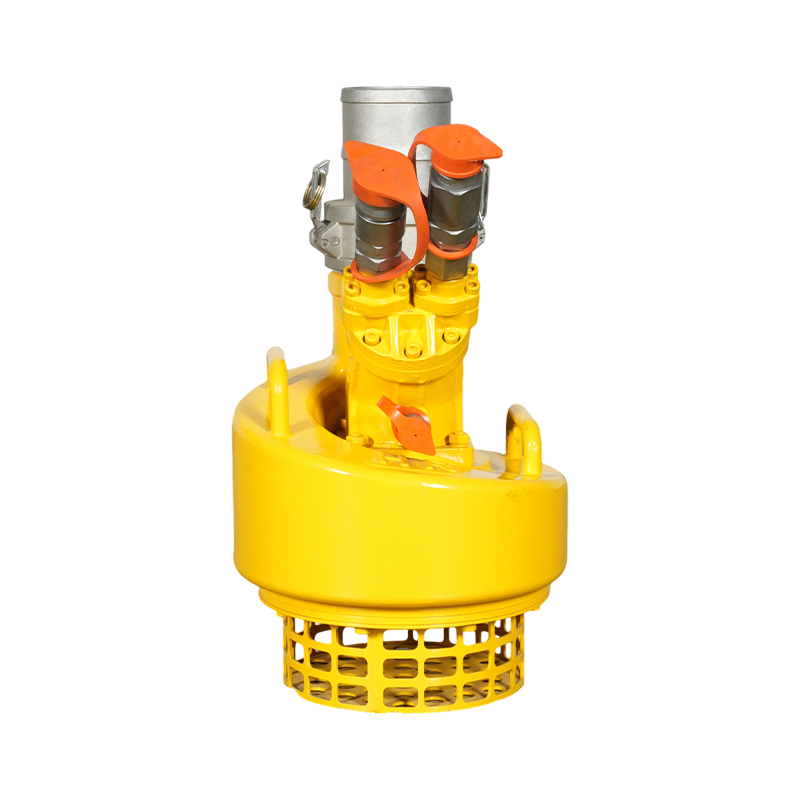

310m³/h Hydraulic High Head Vertical Water Pump (HTP300-120)
The HTP300-120 establishes new industry benchmarks with its groundbreaking 70m head capacity. Its compact 296×360×505mm frame (28kg) achieves an optimal power-to-weight ratio. Delivering 310m³/h flow through a 100mm discharge port, it efficiently handles 20mm solids. The 320bar ultra-high pressure system (120Lpm oil flow) guarantees reliable performance in extreme applications like super high-rise drainage and deep tunnel dewatering. Featuring advanced hydraulic control for precise pressure regulation, it's the ultimate solution for urban deep foundation and utility tunnel drainage challenges.
Parameter
Contact us
| Item | Parameter |
| Weight | 28 kg |
| Dimension | 296x360x505 mm |
| Oil Flow | 80-125 Lpm |
| Max Pressure | 320 bar |
| Maximum Flow Capacity | 310 m³/h |
| Max Head | 70 m |
| Maximum Size of Solid Particles | 20 mm |
| Drainage Diameter | 100 mm |
We can provide you with a satisfactory plan!
About Us
Huirui Intelligent Equipment Co., Ltd.
Huirui Intelligent Equipment (Mount Huangshan) Co., Ltd. is located in Shexian County, Mount Huangshan, the origin of Huizhou merchants' culture in China. An enterprise integrating research and development, production, sales, and service. The company is committed to research and development, and the production of hydraulic systems and hydraulic equipment.
We are Custom 310m³/h Hydraulic High Head Vertical Water Pump (HTP300-120) Manufacturers and China OEM/ODM 310m³/h Hydraulic High Head Vertical Water Pump (HTP300-120) Company.The company produces all year round: hydraulic power stations, hydraulic multifunctional emergency rescue vehicles, hydraulic drainage robots, hydraulic pumps, hydraulic tools, and other equipment. Customized research and development of measurement and control simulation systems, non-standard hydraulic systems, mechatronics, and hydraulic integration equipment etc.
We are willing to carry out extensive technical cooperation with domestic and foreign customers with high-end technology, a rigorous attitude, and perfect quality, and wholeheartedly provide you with the service.
